Start the Device

Once your smart glasses are unboxed, it only takes a few simple steps to get up and running. Here’s how to physically connect your Iristick headset to the smartphone and power it on.

Step-by-Step Setup

  1. Connect the Pocket Unit to your smartphone

    • Use the USB-C connector (or Lightning connector for iOS)

  2. Connect the Coaxial Cable

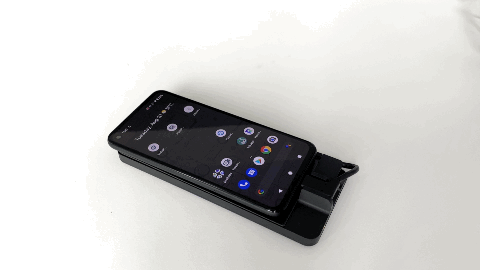

    • First, plug the coax cable into the Pocket Unit

    Connect PU with Coax Cable

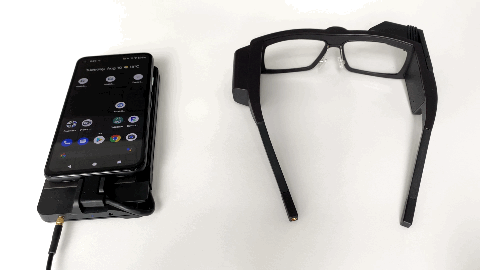

    • Then connect the other end into the Iristick smart glasses

    Connect Smart Glasses with Coax Cable

    • That's it! You are ready to use the smart glasses with your app of choice.

Tip

Your Iristick smart glasses are connected correctly when a light blue LED is visible next to the coax connector on the Pocket Unit.

Check the Connection Status

You’re done! Your headset is now connected and ready to be used with any Iristick application.

The status LED on the Pocket Unit shows the connection state between the headset and your smartphone. If something doesn’t look right, check the color guide in the Troubleshooting section to diagnose the issue.

Next Steps

Now that you’re powered up, go ahead and start using Iristick.WizzEye or Iristick.Collector to begin your work hands-free.
